| 外廓尺寸（长×宽×高）（mm） |
13750,12990,12450×3000,2900,2800×1600,1650,1700,1750,2900,3000,3100,3150,3200,3300,3400,3500,3600,3650 |
货厢栏板内尺寸（长×宽×高）（mm）或容积（m³）或搅动容量（m³） |
不适用 |
| 备注 |

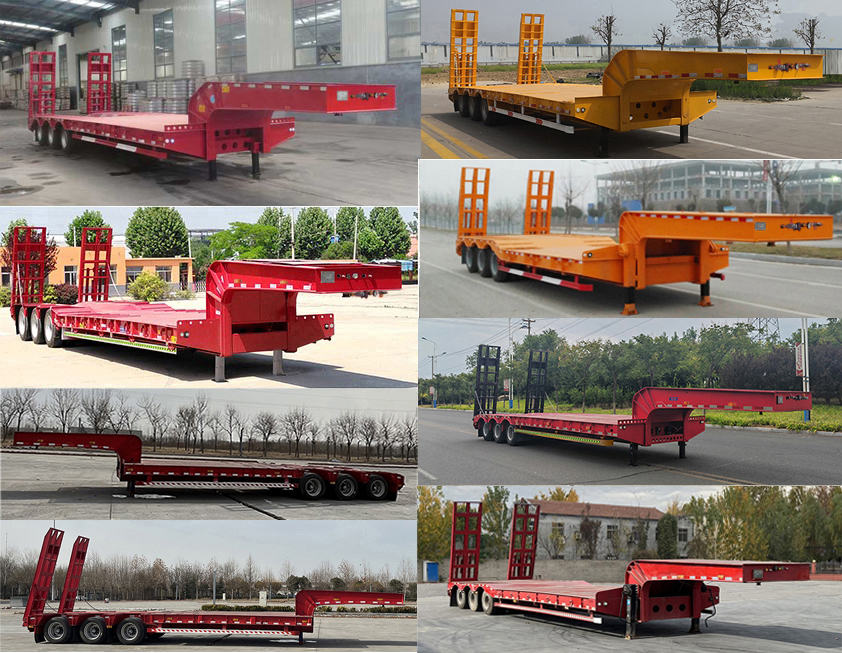

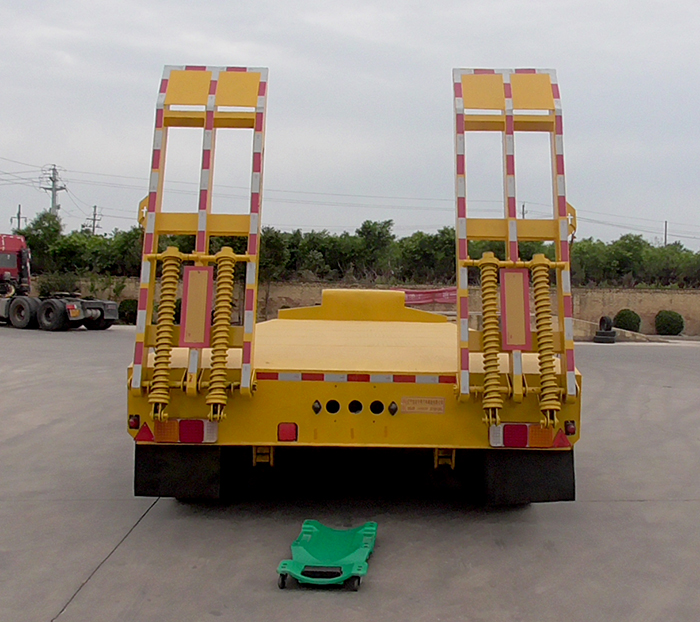

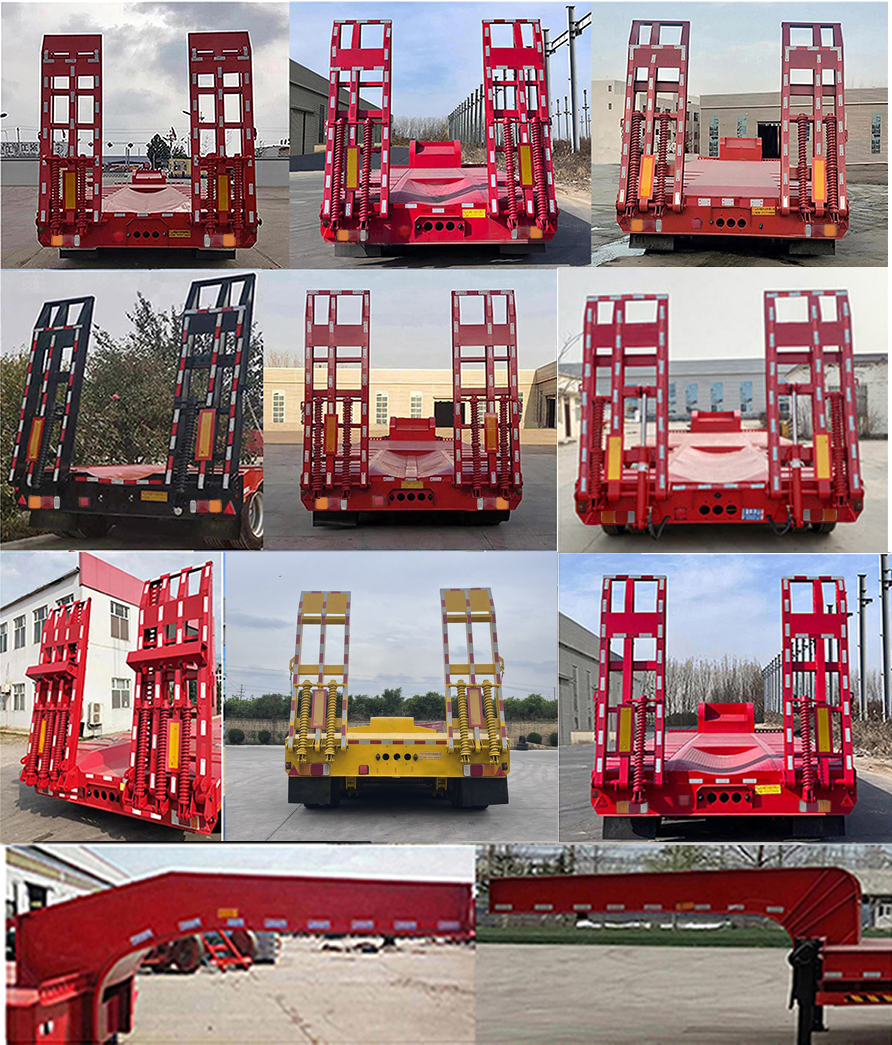

1,仅可运输不可拆解物体,鹅颈部分不允许承载货物,货台承载面高度为:1060mm,选装货台承载面高度为:980mm,1000mm,1030mm,1050mm,1080mm,1100mm,1150mm,选装不带爬梯结构时整车高度为1600mm,1650mm,1700mm,1750mm,选装车身侧面样式;选装后部样式,选装鹅颈结构,后部弹簧助力爬梯可选装单簧,双簧,三排簧;爬梯为液压油缸助力时,可选液压油缸或单簧与液压油缸;选装鹅颈后上部的斜坡样式,大圆弧样式;载货平台选装平直样式和中间部分下凹样式;选装轮胎外露结构;轮胎部位平台选装框架式和铺底板式;2,车长/车宽/轴距/后悬/牵引销中心到车辆最前端距离/半挂车前回转半径/牵引销中心轴线到半挂车辆长度最后端的水平距离(mm)的对应关系: 13750/8600+1310+1310/780/1750/1924/12000, 12990/8600+1310+1310/780/990/1273/12000, 12450/8600+1310+1310/780/450/918/12000, 13750/8450+1310+1310/930/1750/1924/12000, 12990/8450+1310+1310/930/990/1273/12000, 12450/8450+1310+1310/930/450/918/12000, 13750/8300+1310+1310/1080/1750/1924/12000, 12990/8300+1310+1310/1080/990/1273/12000, 12450/8300+1310+1310/1080/450/918/12000, 13750/8230+1310+1310/1150/1750/1924/12000, 12990/8230+1310+1310/1150/990/1273/12000, 12450/8230+1310+1310/1150/450/918/12000, 13750/8150+1310+1310/1230/1750/1924/12000, 12990/8150+1310+1310/1230/990/1273/12000, 12450/8150+1310+1310/1230/450/918/12000, 13750/8100+1310+1310/1280/1750/1924/12000, 12990/8100+1310+1310/1280/990/1273/12000, 12450/8100+1310+1310/1280/450/918/12000, 13750/8000+1310+1310/1380/1750/1924/12000, 12990/8000+1310+1310/1380/990/1273/12000, 12450/8000+1310+1310/1380/450/918/12000, 13750/7900+1310+1310/1480/1750/1924/12000, 12990/7900+1310+1310/1480/990/1273/12000, 12450/7900+1310+1310/1480/450/918/12000, 13750/7830+1310+1310/1550/1750/1924/12000, 12990/7830+1310+1310/1550/990/1273/12000, 12450/7830+1310+1310/1550/450/918/12000, |
